ICG full-automatic blowback filter, Shanghai Weixiu Filtering Equipment Co., Ltd Telephone: 021-50117775

The full-automatic blowback filter is applicable to filtering and cleaning of high viscosity and hazardous liquids.

Application Scope

The full-automatic blowback filters are used for filtering high viscosity and hazardous liquids, such as polymers and monomers, resin, paintings, printing inks, adhesives, lubricants, coolants and cutting fluids.

Successful Applications of the Full-automatic Blowback Filter

Inks, paintings, plastic, collosol, dyes, pigments, latex, polymers, adhesives, latex paintings, coolants, solvent acrylic enamel, calcium carbonate, brine, corn syrup, tea extracts, glucopyrose galactopyranoside, cooking oil, glucose, lard, chocolate, peanut butter, drinks, toothpaste, shampoo, lubricants, clay mud, fuel oil, sulfuric acid, muriatic acid and ethylene glycol.

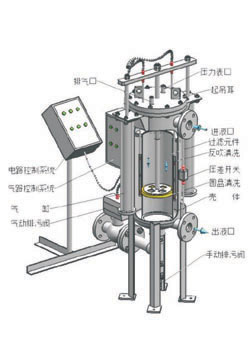

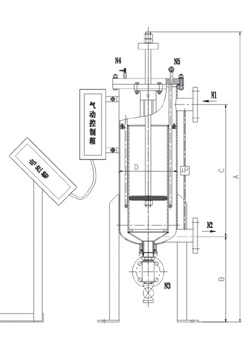

Structure and Working Principles of the ICG Filter

The ICG filter features full-automatic continuous filtering and applies the disc cleaning system that is driven by dual-cylinder. The filter uses a cleaning disc that has a spring to clean collected residues through reciprocating movement in the filtering element. The filtrate is filtered from the inside to the outside of the filtering element. Residues are retained on the surface of the filtering element and thus can be easily cleaned and collected in the collecting chamber. In the downward stroke of the filter, all residues are collected in the collecting chamber by the cleaning disc. In the upward stroke of the filter, the cleaning disc cleans the residues on the surface of the filtering element. Then liquids flush the residues to pass through the disc and enter the collecting chamber. Meanwhile, to effectively eliminate soli d particles in the liquids, in addition to the disc cleaning function, the ICG filter applies the compressed air blowback cleaning function to ensure that impurities are eliminated and the filter screen is thoroughly cleaned.

Design Features of the ICG Filter

The filter applies full-automatic continuous filtering, meeting automatic operation requirements;

The filter is driven by compressed air and thus is safe and explosion resistant.

The filter applies mechanical cleaning for the filter screen and thus features long service life, high filtering precision and excellent corrosion resistance.

The filter reduces the risk that operators contact hazardous matters, reduces environmental pollution and reduces requirements on labor. In addition, the filter screen does not be replaced.

The filter increases the profit margin, increases the overall efficiency and shortens the shutdown repairing time.

The filter is compactly designed and covers small area.

The filer does not need to be stopped during collection and discharging residues.
